1. Kondisi Mati di cek PS tidak ada yang short
2. Waktu ditekan PS ada ampere naik sedikit
3. Langsung flashing software
4. Done

Proses Eksekusi:

VBATT Powering Down <<<<
VBATT Powering Up   >>>>
SET VCCIO Level Done
SET BSI Load Done

Booting Phone...
CPU ID Response: A200341100
CPU Type: XG110 2.1B
Phone Booted at after First attempt...

******************************************************
                  TIME STARTS HERE
******************************************************


Sending PBL 19456 bytes...
PBL Successfully Sent...

Sending SBL 65024 bytes...
SBL Successfully Sent...

Flash Chip Manufacturer: STMicroelectronics
Flash Chip Type: M58WR064 64 Mbit (4Mb x 16) NOR
Extended Information: Multiple Bank / Burst / 1.8v

Processing Image File: D:\Firmware\Nokia\RM-647\273C5861_rm647_006.700

 Data Block Found...
Number of Sections: 03
IMAGE Certificate Block Sent Successfully...
 Processing Section 01 of 03
IMAGE Erase Block: 0x00800000~0x00A0FFFE
Start Erasing...
Erasing Please Wait...
Block Erase Done...
Preparing Data Blocks...
Data Size: 2162688 bytes
Data Checksum: 32ED
Uploading Data Blocks to phone...
IMAGE Data Blocks uploaded to phone...
 Processing Section 02 of 03
IMAGE Erase Block: 0x00C60000~0x00EAFFFE
Start Erasing...
Erasing Please Wait...
Block Erase Done...
Preparing Data Blocks...
Data Size: 2069632 bytes
Data Checksum: EBB0
Uploading Data Blocks to phone...
IMAGE Data Blocks uploaded to phone...
 Processing Section 03 of 03
IMAGE Erase Block: 0x00FFC000~0x00FFFFFE
Start Erasing...
Erasing Please Wait...
Block Erase Done...
Preparing Data Blocks...
Data Size: 64 bytes
Data Checksum: 0000
Uploading Data Blocks to phone...
IMAGE Data Blocks uploaded to phone...
Start Data Verification... (Please wait)
Data Verification Successful...


Processing Image File: D:\Firmware\Nokia\RM-647\0CBC8DF1_rm647_006.70me

 Data Block Found...
Number of Sections: 01
IMAGE Certificate Block Sent Successfully...
 Processing Section 01 of 01
IMAGE Erase Block: 0x00210000~0x0032CBFE
Start Erasing...
Erasing Please Wait...
Block Erase Done...
Preparing Data Blocks...
Data Size: 1166336 bytes
Data Checksum: 410C
Uploading Data Blocks to phone...
IMAGE Data Blocks uploaded to phone...
Start Data Verification... (Please wait)
Data Verification Successful...


Processing Image File: D:\Firmware\Nokia\RM-647\0EB79866_rm6470_nai06.70me

 Data Block Found...
Number of Sections: 01
IMAGE Certificate Block Sent Successfully...
 Processing Section 01 of 01
IMAGE Erase Block: 0x00EB0000~0x00EFB43E
Start Erasing...
Erasing Please Wait...
Block Erase Done...
Preparing Data Blocks...
Data Size: 308288 bytes
Data Checksum: 742C
Uploading Data Blocks to phone...
IMAGE Data Blocks uploaded to phone...
Start Data Verification... (Please wait)
Data Verification Successful...


Exit Flash Mode Done...
Time Elapse : 00:02:31

******************************************************
    You must Factory Reset the phone to enable the
   ringtones and other  customized settings to work
******************************************************


 Waiting For Phone to go Online...

 5,  4,  3,  2,  1...

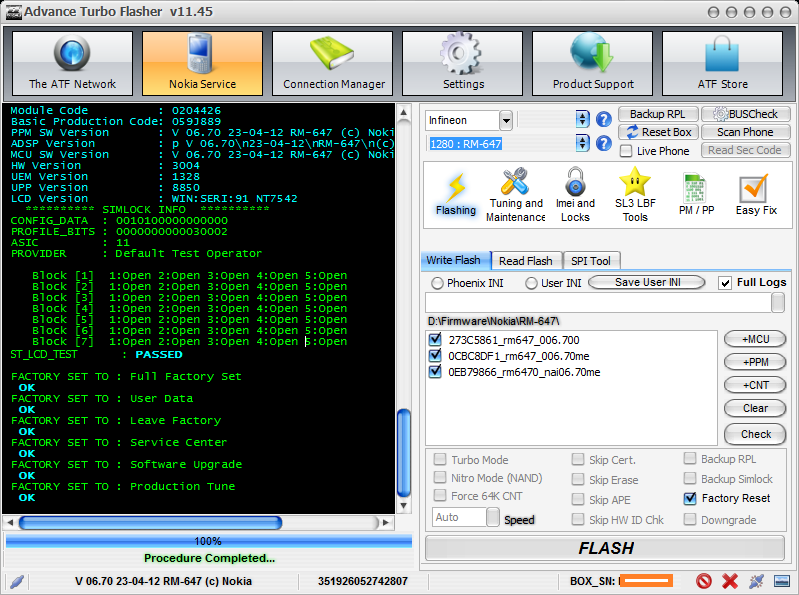

MCU: V 06.70 23-04-12 RM-647 (c) Nokia
IMEI: 351926052742807
Product Serial Number: FD06587AI
Product Code         : 0593073
Module Code          : 0204426
Basic Production Code: 059J889
PPM SW Version       : V 06.70 23-04-12 RM-647 (c) Nokia ME
ADSP Version         : p V 06.70\n23-04-12\nRM-647\n(c) NMP\nme
MCU SW Version       : V 06.70 23-04-12 RM-647 (c) Nokia
HW Version           : 3004
UEM Version          : 1328
UPP Version          : 8850
LCD Version          : WIN:SERI:91 NT7542
  ********** SIMLOCK INFO  **********
CONFIG_DATA  : 0010100000000000
PROFILE_BITS : 0000000000030002
ASIC         : 11
PROVIDER     : Default Test Operator

   Block [1]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [2]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [3]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [4]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [5]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [6]  1:Open 2:Open 3:Open 4:Open 5:Open
   Block [7]  1:Open 2:Open 3:Open 4:Open 5:Open
ST_LCD_TEST               : PASSED

FACTORY SET TO : Full Factory Set
 OK
FACTORY SET TO : User Data
 OK
FACTORY SET TO : Leave Factory
 OK
FACTORY SET TO : Service Center
 OK
FACTORY SET TO : Software Upgrade
 OK
FACTORY SET TO : Production Tune
 OK




FBUS Pinout ;
